1) The three waves shown in each diagram have the same amplitude and frequency but differ in phase.

They are added together to give a resultant wave.

In which case is the resultant wave zero?

2) A stationary longitudinal wave is set up in a pipe.

In the diagrams below, the length of each arrow represents the amplitude of the motion of the air molecules, and the arrow head shows the direction of motion at a particular instant.

Which diagram shows a stationary wave in which there are two nodes and two antinodes?

3) Where, in a standing wave, do the vibrations of the medium occur?

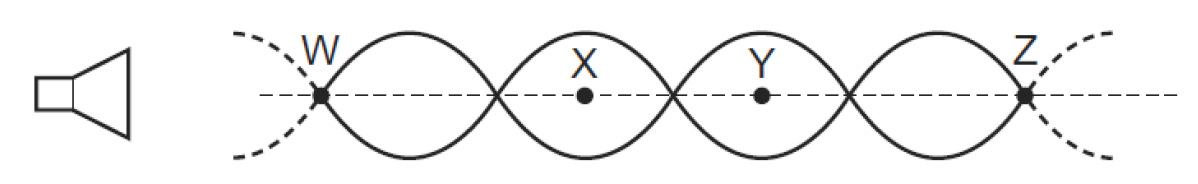

4) The diagram represents the pattern of stationary waves formed by the superposition of sound waves from a loudspeaker and their reflection from a metal sheet (not shown).

W, X, Y and Z are four points on the line through the centre of these waves.

Which statement about these stationary waves is correct?

5) The diagram represents a stationary wave on a stretched string.

What is represented by point P and by the length x?
