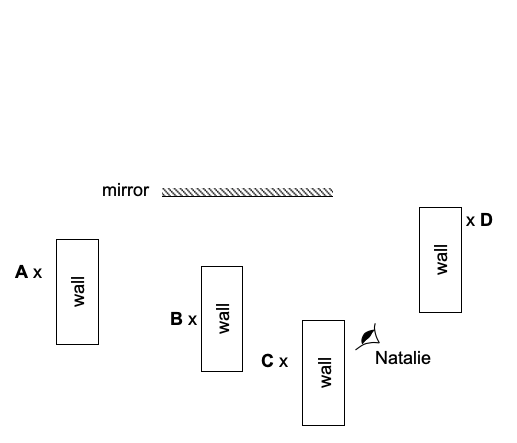

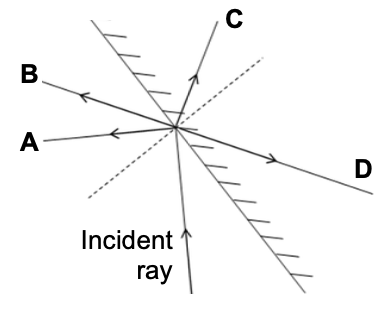

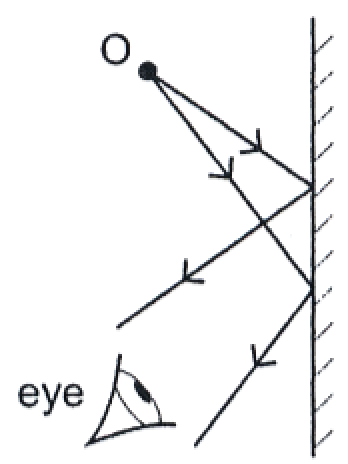

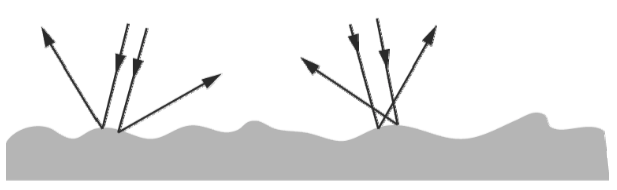

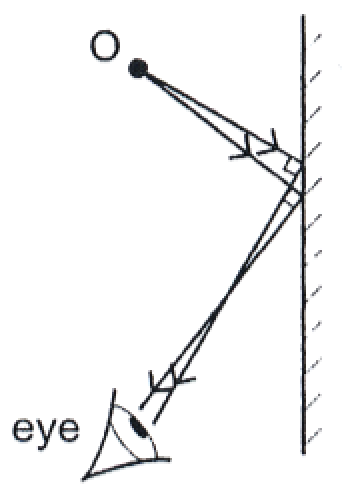

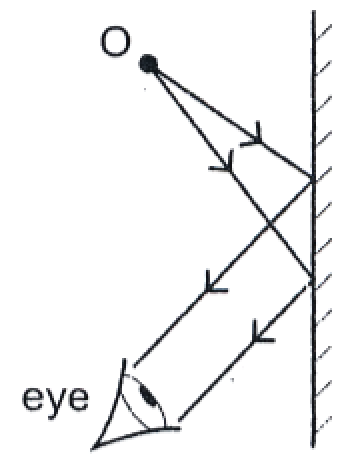

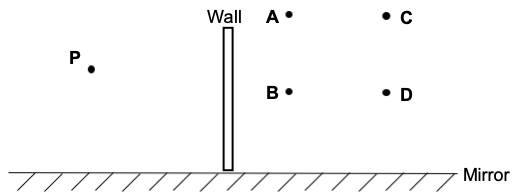

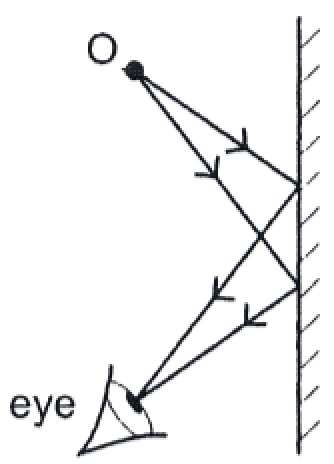

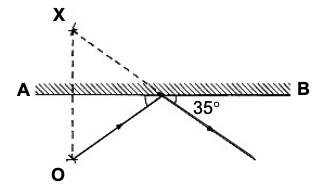

Revision: Reflection Report a question What's wrong with this question? You cannot submit an empty report. Please add some details. 02 Reflection - Revision Quiz Test your understanding of Reflection here: 1 / 5 1) An eye views an object O by reflection in a plane mirror. Which is the correct ray diagram? 2 / 5 2) In a game of hide and seek, Natalie can only see one of her friends hiding behind a wall via a reflection from a mirror. The diagram below shows the top views of Natalie, each of her friends' positions shown by a cross x, and the walls. C B A D 3 / 5 3) When parallel rays of light are incident on an irregular surface, diffuse reflection occurs. Which of the following statements about diffuse reflection is correct? Diffuse reflections obey the laws of reflection. The image formed by diffuse reflection is blurred, as the angle of reflection is greater than the angle of incidence. The light rays are all reflected in the same direction. The light rays are absorbed by the surface. 4 / 5 4) The diagram below shows a light ray incident on a mirror. Which arrow represents the most likely path of the reflected ray? D C B A 5 / 5 5) Which of the following statements is one of the laws of reflection? The incident ray, the reflected ray and the normal all lie on the same plane as the mirror. The incident ray, the reflected ray and the normal all lie on the same plane. The angle of incidence, the angle of reflection and the normal all lie on the same plane as the mirror. The angle of incidence, the angle of reflection and the normal all lie on the same plane. Your score is Restart quiz
