9.3.2 – Barometers | Physics with Mr Shone

A barometer is an instrument for measuring atmospheric pressure.

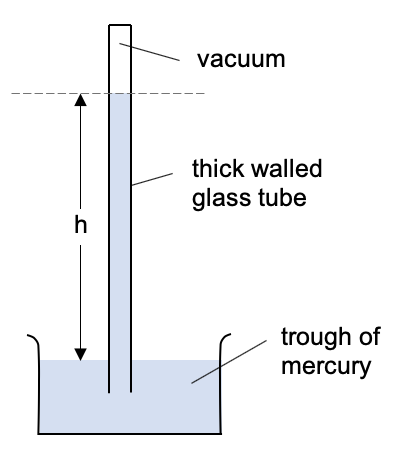

Simple Mercury Barometer

The simplest device for measuring atmospheric pressure is a simple mercury barometer. This device consist of a mercury-filled inverted glass tube placed in a reservoir of mercury which is open to the atmosphere.

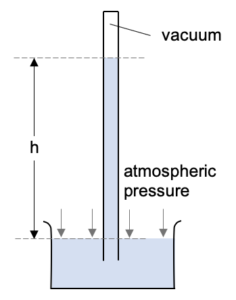

The atmospheric pressure exerting on the reservoir will push the mercury up the glass tube. There is no force pushing down on the mercury in the tube as there is a vacuum above it.

This is similar to the syringe and straw that we looked at on the previous page.

What is a vacuum?
A vacuum refers space devoid of all matter. If you remove all of the air from a space you are left with a vacuum. Outer space can be considered to be a vacuum. The pressure of a vacuum is zero.

What is a vacuum?

A vacuum refers space devoid of all matter. If you remove all of the air from a space you are left with a vacuum.

Outer space can be considered to be a vacuum.

The pressure of a vacuum is zero.

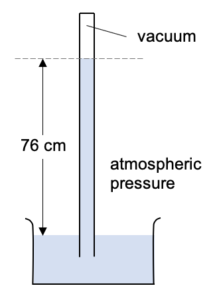

The higher the atmospheric pressure, the further up the glass tube the mercury will be pushed.

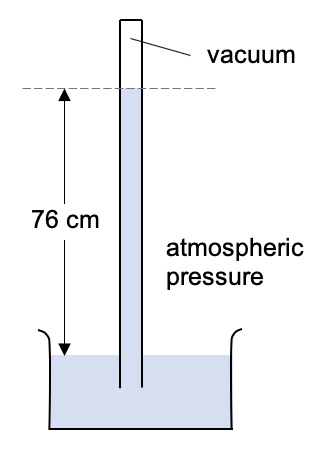

Typical atmospheric pressure will push mercury 76 cm up the tube.

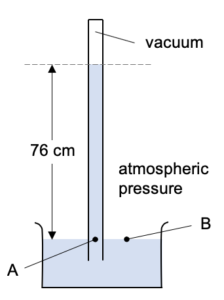

To understand why the mercury only gets pushed a certain distance up the tube lets consider the pressure at the points A and B here:

Pressure at A is caused by it being under 76 cm of mercury. There is a vacuum above it so this doesn’t add anything to the pressure.

Pressure at B is caused by the atmospheric pressure pushing against it. So B is a point at atmospheric pressure.

However, A and B are actually two points in a single body of liquid (the mercury) and at the same depth. That means that they have the same pressure.

Thus atmospheric pressure is equal to the pressure under 76 cm of mercury.

This is normally simply written as 76 cm Hg. But you can always read this to yourself as “a pressure equivalent to the pressure caused by 76 cm of mercury”.
(Hg – being the chemical symbol for mercury)

cm Hg can easily be converted into Pa using the equation P = h ρ g.

Example: cm Hg to Pa
The following barometer is reading an atmospheric pressure of 76.0 cm Hg. What is this in pascals given the density of mercury to be 13 600 kg/m³? P = h ρ g P = 0.760 × 13 600 × 10 P = 103 360 Pa P = 103 kPa

Example: Water as the barometric liquid
If we used water as the liquid in the barometer how tall would the water column be? Assume atmospheric pressure is 100 kPa and the density of water is 1000 kg/m³ P = h ρ g 100 000 = h × 1000 × 10 h = 10.0 m

Example: Water as the barometric liquid

If we used water as the liquid in the barometer how tall would the water column be?

Assume atmospheric pressure is 100 kPa and the density of water is 1000 kg/m³

P = h ρ g

100 000 = h × 1000 × 10

h = 10.0 m

Choice of Barometric Liquid
We can use any liquid in the barometer. However, water would require a barometer to be more than 10 metres tall. Mercury is liquid with a very high density (~13 600 kg / m³ ) and so the height of the tube will be correspondingly smaller. The density of mercury is 13.6 times that of water. Thus the height of the water tube will be 13.6 times taller. 0.76 m × 13.6 ≈ 10 m Mercury has a high boiling point and is not very volatile meaning that there will be very little evaporation into the vacuum space above the mercury. Mercury is poisonous and so you would not be seeing an open barometer like this in the physics laboratory.

Choice of Barometric Liquid

We can use any liquid in the barometer.

However, water would require a barometer to be more than 10 metres tall.

Mercury is liquid with a very high density (~13 600 kg / m³ ) and so the height of the tube will be correspondingly smaller.

The density of mercury is 13.6 times that of water. Thus the height of the water tube will be 13.6 times taller.

0.76 m × 13.6 ≈ 10 m

Mercury has a high boiling point and is not very volatile meaning that there will be very little evaporation into the vacuum space above the mercury.

Mercury is poisonous and so you would not be seeing an open barometer like this in the physics laboratory.

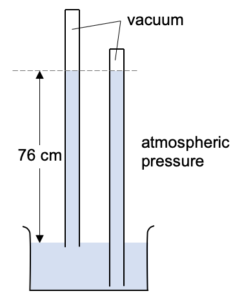

What happens if we push the tube lower, or pull the tube higher?

The height of the mercury column remains the same. i.e. the vertical distance form the mercury level in the reservoir to the mercury level in the tube hasn’t changed.

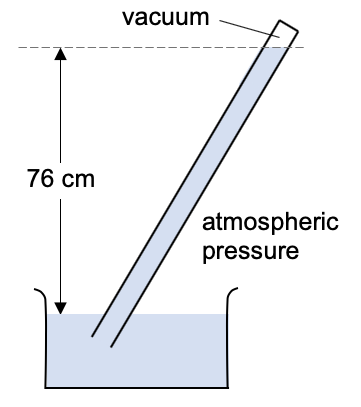

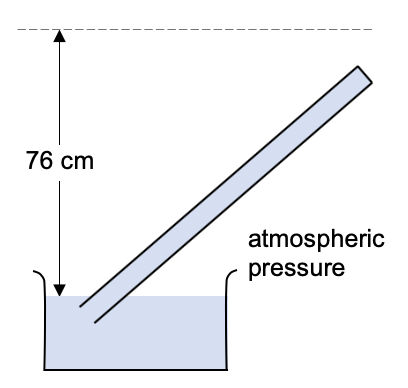

What happens if we tilt the tube to the side?

The height of the mercury column again remains the same. i.e. the vertical distance form the mercury level in the reservoir to the mercury level in the tube hasn’t changed.

If we tilt the tube too much it will be completely filled with mercury and cannot be used to measure atmospheric pressure.

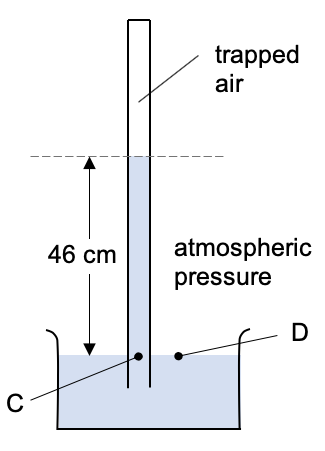

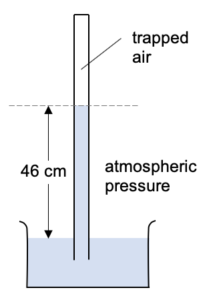

What happens if some air gets above the mercury column?

The mercury level in the tube will now be lower. The air trapped above the mercury is pushing down on the column of mercury.

The height of the mercury column (46 cm) is not a measurement of the atmospheric pressure.

Pressure at D is caused by the atmospheric pressure of the surrounding air (let’s assume that the pressure is 76 cm Hg).

The pressure at C (P_C) is caused by the mercury column above it pushing down PLUS the pressure of the air (P_A) above the mercury column.

P_C = P_D

46 + P_A = 76

P_A = 30 cm Hg

So the pressure of the trapped air is 30 cm Hg.

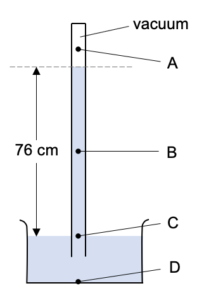

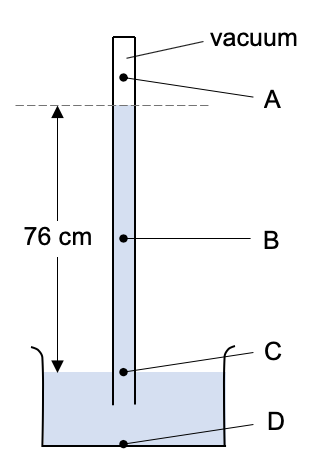

Example: Pressure in a barometer
Which point shows the liquid with the highest pressure? Answer: D A is in the vacuum and so the there is no pressure. e.g. P_A is 0 cm Hg. B is halfway between vacuum and C (atmospheric pressure). eg. P_B may be 38 cm Hg. C is in at the level of the mercury reservoir. i.e. P_C is at atmospheric pressure, P_C = 76 cm Hg. D is in the lowest point in the liquid and so had the greatest pressure. The pressure is greater than atmospheric pressure. e.g. P_D may be 90 cm Hg.

Example: Pressure in a barometer

Which point shows the liquid with the highest pressure?

Answer: D

A is in the vacuum and so the there is no pressure. e.g. P_A is 0 cm Hg.

B is halfway between vacuum and C (atmospheric pressure). eg. P_B may be 38 cm Hg.

C is in at the level of the mercury reservoir. i.e. P_C is at atmospheric pressure, P_C = 76 cm Hg.

D is in the lowest point in the liquid and so had the greatest pressure. The pressure is greater than atmospheric pressure. e.g. P_D may be 90 cm Hg.

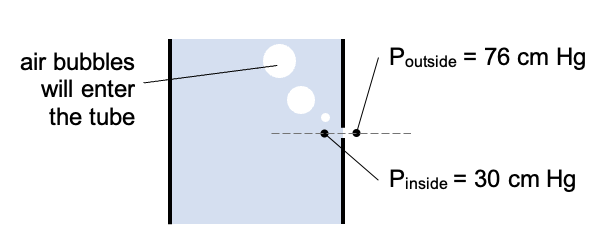

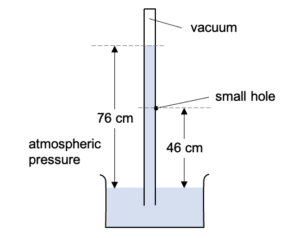

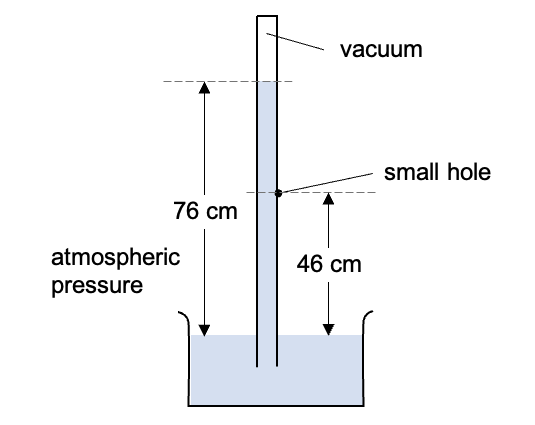

Example: Crack in a barometer
Explain what would happen if a small hole is made in a barometer tube 46 cm from the mercury reservoir level. Consider the pressures either side of the hole. Outside the tube the pressure, P_outside is just atmospheric pressure, i.e. 76 cm Hg. Inside the tube the pressure, P_inside is 30 cm Hg. The difference in pressure will mean a flow of air (in this case) into the tube. As fluids will flow from high pressure to low pressure. As air enters and rises into the space above the mercury in the tube, the pressure in this space will keep increasing until the level of the mercury in the tube falls down to the same level as the reservoir. At this pressure inside the tube will also be atmospheric pressure (76 cm Hg).

Example: Crack in a barometer

Explain what would happen if a small hole is made in a barometer tube 46 cm from the mercury reservoir level.

Consider the pressures either side of the hole.

Outside the tube the pressure, P_outside is just atmospheric pressure, i.e. 76 cm Hg.

Inside the tube the pressure, P_inside is 30 cm Hg.

The difference in pressure will mean a flow of air (in this case) into the tube. As fluids will flow from high pressure to low pressure.

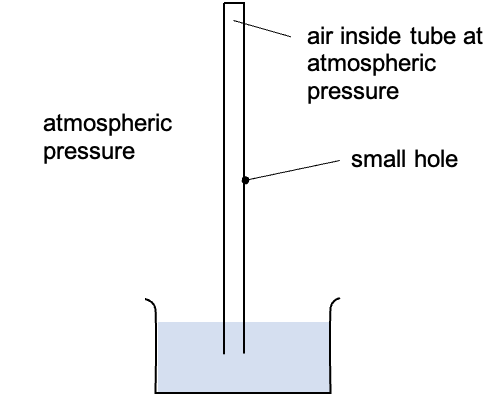

As air enters and rises into the space above the mercury in the tube, the pressure in this space will keep increasing until the level of the mercury in the tube falls down to the same level as the reservoir. At this pressure inside the tube will also be atmospheric pressure (76 cm Hg).

Simple Mercury Barometer
