A switch improves safety for the users of the circuit as well as provides convenience.
A switch should always be placed in the live wire so that when the switch is open, the appliance will be disconnected from the high voltage source.

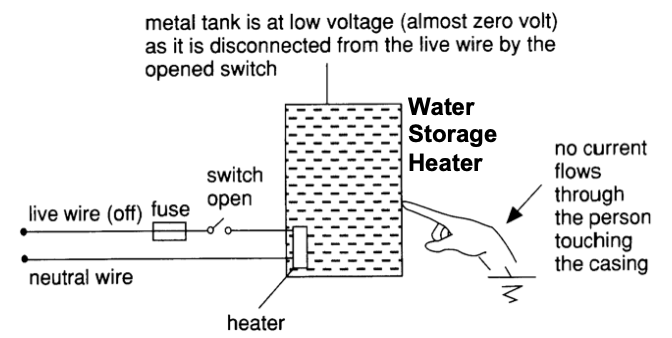

switch in correct position

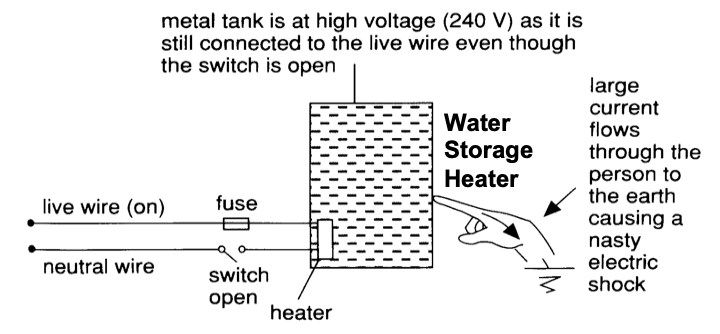

switch in wrong position
