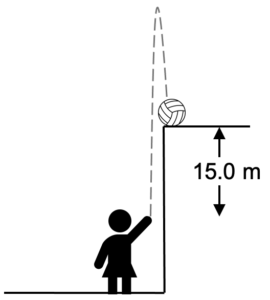

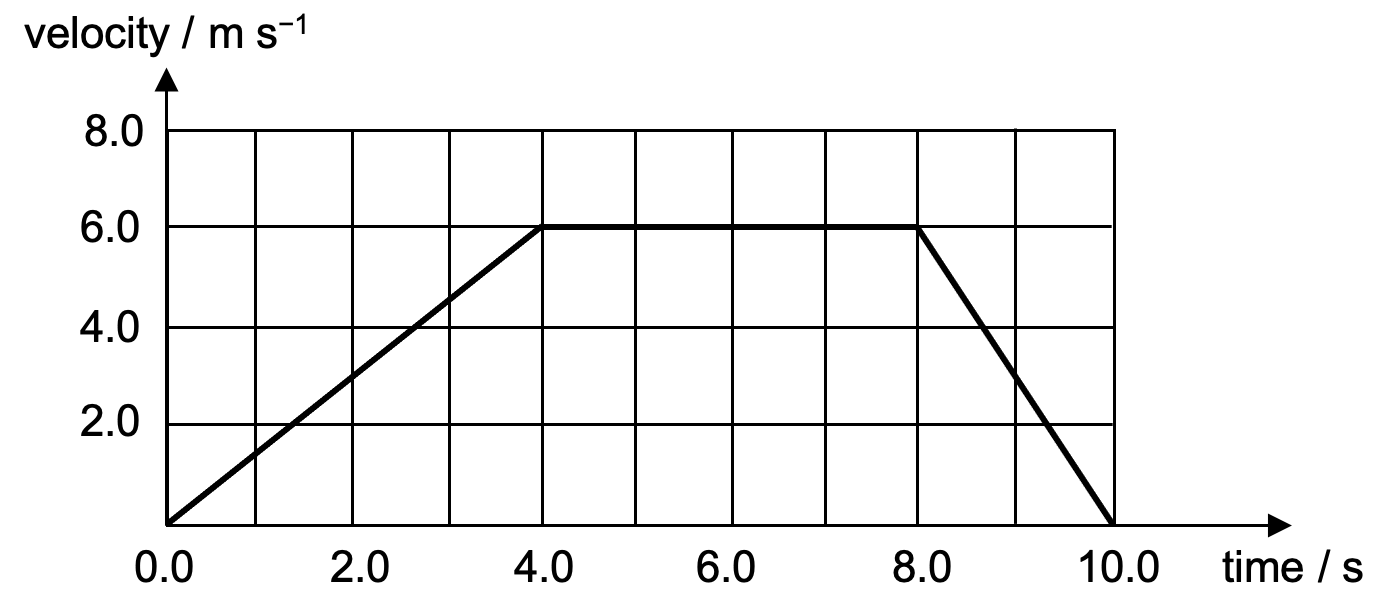

2022 S4 MY P1 2022 S4 MY P1 2022 S4 MY P1 1 / 30 2022 S4 MY P1 Q01 The graph below shows the velocity of a bicycle over a 10.0 s period. What is the distance travelled by the bicycle in 10.0 s? 0 m 42 m 22 m 60 m 2 / 30 2022 S4 MY P1 Q02 A girl throws a ball vertically upwards at 20 m s–1 such that it hits a ledge 15.0 m above her hand. Assume air resistance is negligible. How long was the ball in the air? 0.75 s 3.0 s 1.0 s 1.5 s 3 / 30 2022 S4 MY P1 Q03 A ball is thrown vertically into the air. If there is no air resistance, which statement about the acceleration of the ball is wrong? It maintains the same value throughout its motion. It always acts towards the centre of the Earth. It has the opposite sign to its velocity when the ball is moving upwards. It is zero when the ball is at the highest point. 4 / 30 2022 S4 MY P1 Q04 Three identical blocks are suspended by light ropes with tensions T1, T2 and T3 as shown. Additional horizontal strings, S1 and S2 connect the blocks together. Which list correctly gives the tension in the ropes in increasing order? T1, T3, T2 T3, T2, T1 T2, T1, T3 T2, T3, T1 5 / 30 2022 S4 MY P1 Q05 In which situation does friction act in the same direction as the velocity of the moving object? friction on a box being pushed along the floor friction on the skis of a skier gliding downhill friction on the foot of a person walking forward friction on the road of a car accelerating forward 6 / 30 2022 S4 MY P1 Q06 Which is not a good approximation to normal atmospheric pressure? 76 cm Hg 100 Pa 100 kN m–2 10 m H2O 7 / 30 (not tested - no longer in syllabus) 2022 S4 MY P1 Q07 A length L1 of air is trapped in a tube by a length h of mercury as shown at pressure P1. When the tube is inverted, the length of air becomes L2 and the pressure P2. Which values could represent P1, P2 and h? B C A D 8 / 30 2022 S4 MY P1 Q08 Which statement about infrared and ultraviolet radiation is true? frared has higher frequency and longer wavelength than ultraviolet radiation. Infrared has lower frequency and shorter wavelength than ultraviolet radiation. Infrared has lower frequency and longer wavelength than ultraviolet radiation. Infrared has higher frequency and shorter wavelength than ultraviolet radiation. 9 / 30 2022 S4 MY P1 Q09 Which statement about the uses of electromagnetic radiation is correct? Infrared radiation causes sunburn. Microwaves are used by Bluetooth devices. X-rays are used in sunbeds. Gamma rays are used in radio transmission. 10 / 30 2022 S4 MY P1 Q10 Which row correctly describes the type of wave for the three waves listed below? A D B C 11 / 30 2022 S4 MY P1 Q11 The diagram below shows the position of a water wave at an instant of time as a transverse wave travels along it from left to right. Which row correctly describes the direction of motion of the points M and N on the water surface at this instant? C A D B 12 / 30 2022 S4 MY P1 Q12 The diagram shows a ripple tank with plane water waves passing from a deep region to a shallow region. Which diagram best shows the wave form in the shallow region? 13 / 30 2022 S4 MY P1 Q13 The sounds from two tuning forks are captured on the screen of a cathode ray oscilloscope as shown in the following diagrams. The y-gain and time base of the oscilloscope are kept at the same values for both displays. Which statement is true? Sound 1 is louder and higher in pitch than Sound 2. Sound 1 is louder and lower in pitch than Sound 2. Sound 1 is softer and higher in pitch than Sound 2. Sound 1 is softer and lower in pitch than Sound 2. 14 / 30 2022 S4 MY P1 Q14 A man stands between two parallel walls and claps once. He hears echoes after 0.8 s and 1.2 s. When will the third echo be heard after the initial clap? 2.4 s 1.6 s 2.0 s 3.0 s 15 / 30 2022 S4 MY P1 Q15 The diagram below shows the cross-section of a rectangular water container. When continuous plane wavefronts are set up on side X, which of the following diagrams shows the top view of the wavefronts as they travel from X to Y? 16 / 30 2022 S4 MY P1 Q16 Which statement about static electricity is correct? Electrons and protons are not found in a neutral body. A positively charged object does not contain electrons. A perfect insulator has no free electrons. A neutral object will not be attracted to a charged object. 17 / 30 2022 S4 MY P1 Q17 A negatively charged object attracts a suspended light conducting ball. The light conducting ball can be (I) negatively charged (II) positively charged (III) neutral (I) only (II) only (I) and (II) only (II) and (III) only 18 / 30 2022 S4 MY P1 Q18 Two rods, R and S, made from insulating material carry charges of +3 μC and –1 μC respectively. What is the charge on rod R after the two rods briefly touch each other? +2 μC +1 μC 0 μC +3 μC 19 / 30 2022 S4 MY P1 Q19 Two identical light conducting balls of different charge are suspended freely as shown. Which diagram shows the positions of the two balls after they touch briefly? 20 / 30 2022 S4 MY P1 Q20 Which is a unit of current? V s–1 V Ω W s–1 C s–1 21 / 30 2022 S4 MY P1 Q21 In the circuit shown, the current through the 3.0 Ω resistor is 1.5 A. What is the e.m.f. of the cell? 12 V 4.5 V 22 V 9.0 V 22 / 30 2022 S4 MY P1 Q22 What is the potential difference across the 5.0 Ω resistor in the circuit shown below? 4.0 V 2.0 V 3.0 V 6.0 V 23 / 30 2022 S4 MY P1 Q23 A 2.0 m wire with a radius of 1.0 mm has a resistance of 12 Ω. What is the resistance of a 4.0 m long wire that has a radius of 2.0 mm and is made of the same material? 24 Ω 12 Ω 6.0 Ω 3.0 Ω 24 / 30 2022 S4 MY P1 Q24 What is the effective resistance of the circuit shown? 2.9 Ω 1.6 Ω 7.4 Ω 6.0 Ω 25 / 30 2022 S4 MY P1 Q25 What is the current through the 2.0 Ω resistor? 0.54 A 1.4 A 1.7 A 0.81 A 26 / 30 2022 S4 MY P1 Q26 The graph below shows how the potential difference across resistor 1 and resistor 2 varies with current. Which statement is correct? Only resistor 2 is ohmic. Both resistors are non-ohmic. Resistor 2 has a greater resistance than resistor 1. Resistor 1 has a greater resistance than resistor 2. 27 / 30 2022 S4 MY P1 Q27 The graph below shows how the potential difference across resistor 1 and resistor 2 varies with current. If both resistors were connected in series to a dry cell and the current through resistor 1 is 0.080 A, what is the e.m.f. of the cell? 2.00 V 1.60 V 0.40 V 1.20 V 28 / 30 2022 S4 MY P1 Q28 What is the reading shown on the ammeter in the following circuit? 1.5 A 3.0 A 2.0 A 2.4 A 29 / 30 2022 S4 MY P1 Q29 In the circuit below, the resistance of the thermistor decreases as temperature rises. What kind of environment will most probably cause the lamp to light up? hot and bright cold and bright cold and dark hot and dark 30 / 30 2022 S4 MY P1 Q30 In the circuit below, PQ is a 2.0 m long resistance wire. When PS = 1.2 m, the sensitive ammeter indicates a zero reading. What is the resistance of R? 2.7 Ω 4.0 Ω 5.0 Ω 6.7 Ω Your score is
